XSL30L

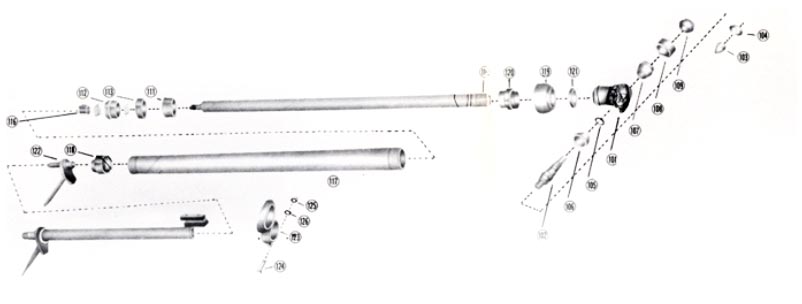

XSL30L PARTS LIST

Pneumatic Drill
No.	MODEL	PART NUMBER
1	Swivel	7825-90-001
2	Pivot Stud	7825-90-002
3	Pivot Stud Nut	7825-90-003A
4	Pivot Stud Washer	9920-36-000
5	"O" Ring 15	9954-80-015
6	Pivot Cone	7825-90-004
7	Splined Pivot Cone	7825-90-005
8	Pivot Stud Spring	78925-90-006
9	Spring Retaining Nut	7825-90-007
10	Feed Piston	7897-83-100B
