Product Detail

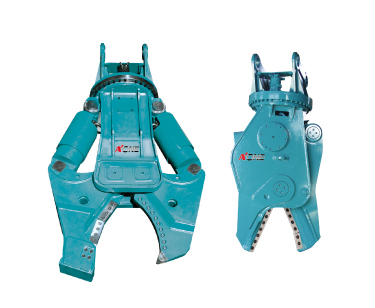

Hydraulic Shear (GS200A-II, GS300A-II : Twin Cylinder, GS200A, GS300A : One Cylinder)

Specifications

Attachments
Description		Unit	GS200A	GS300A	GS200A-II	GS300A-II
Oil flow rate		Kg	2,000	2,450	1,760	2,800
Overall length		mm	1,995	2,174	2,072	2,650
Overall width		mm	1,071	1,158	1,294	1,650
Max. Opening width		mm	507	571	522	602
Cutter Length		mm	500	600	480	585
Cutting force		ton	172	270	200	330
Operating pressure		kgf/cm2	300	320	300	320
Oil Flow Rate		LPM	200-250	250-300	200-250	250-300
Suitable Excavator		ton	18 - 26	26-32	18-26	27-36
Hydraulic Motor Rotating	Motor setting pressure	Kgf/cm2 (psi)	160 (2,275)	160 (2,275)	160 (2,275)	160 (2,270)
	Motor	LPM	36 - 40	36 - 40	36 - 40	15 - 60
	Rotation	GPM	9.5 - 10.5	9.5 - 10.5	9.5-10.5	9.5-10.5
	Rotation speed	RPM	13 - 15	15 - 15	13 - 15	13 - 15
