Product Detail

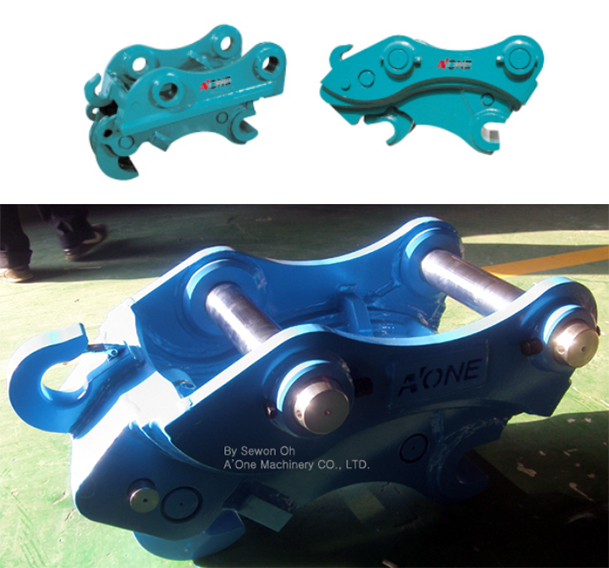

Quick Coupler(Quick Hitch, Link)

Specifications - Free type

Attachments
Description Free Type
Unit GL50FR GL130FR GL200FR GL300FR GL400FR GL500FR
Overall
Length		 mm 543 765 925 1,020 1,270
Overall
Width		 mm 306 388 493 575 625
Overall
Height		 mm 225 346 414 508 550
Mounting
Distance		 mm 230-280 380-420 455-485 490-545 530-610
Distance
between
High & Low Pin		 mm 150 220 270 300 330
Operating Oil
Pressure		 l/min 10-20 10-20 10-20 10-20 10-20
Operating
Pressure		 kgf/cm2 40 40 40 40 40 40
Suitable
Excavator		 ton 3-5 7-15 18-26 27-30 32-36 37-45

Specifications - Free type

Attachments
Description Free Type
Unit GL50F GL130F GL200F GL300F GL400F GL500F
Overall
Length		 mm 510 690 850 970 1,170
Overall
Width		 mm 257 380 475 545 585
Overall
Height		 mm 260 375 480 515 570
Mounting
Distance		 mm 230-280 380-420 455-485 490-545 530-610
Distance
between
High & Low Pin		 mm 150 220 270 300 330
Operating Oil
Pressure		 l/min 10~20 10~20 10~20 10~20 10~20
Operating
Pressure		 kgf/cm2 40-380 40-380 40-380 40-380 40-380 40-380
Suitable
Excavator		 ton 3-5 7-15 18-26 27-30 32-36 37-45
  • * Above specifictations are subject to change without prior notice.
