TY280

  • Pneumatic Drill
  • Spare parts
  • TY280

Product Detail

TY - 280L

  • 1
  • 2

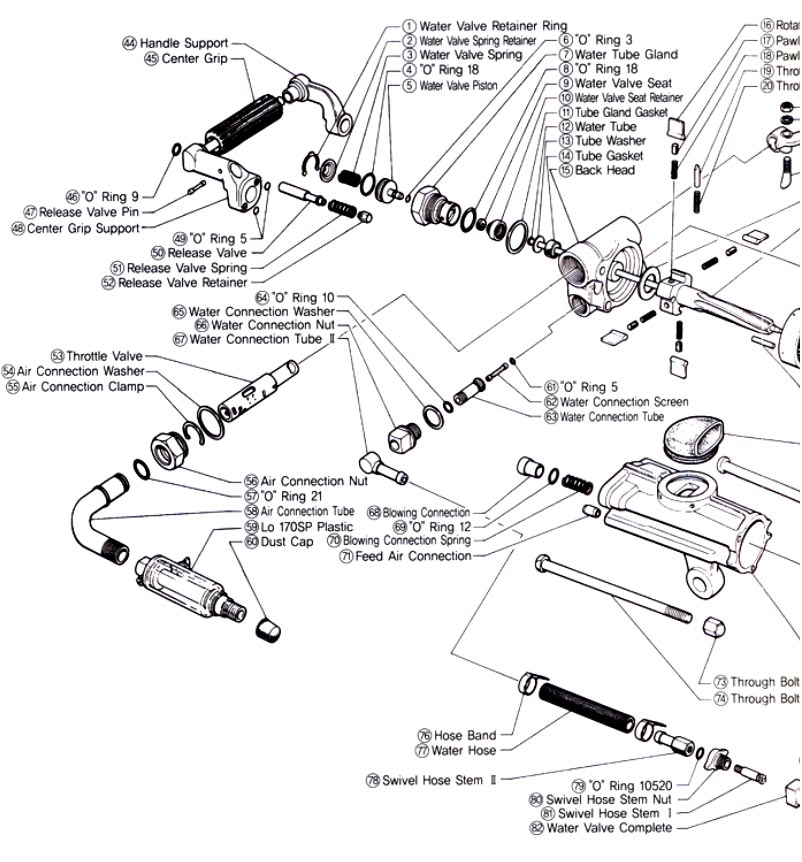

TY 280-L PARTS LIST

Pneumatic Drill
No. MODEL PART NUMBER MYCART
1

Water Valve Retainer Ring

 7825-10-039A
2

Water Valve Spring Retainer

 7825-10-0380
3

Water Valve Spring

7898-17-0260
4

"O" Ring 18

 9954-80-0180
5

Water Valve Piston

 7825-10-032F
6

"O" Ring 3

 9954-80-0030
7

Water Tube Gland

 7825-10-031A
8

"O" Ring 18

 9954-80-0180
9

Water Valve Seat

 7825-10-0410
10

Water Valve Seat Retainer

 7825-10-042B
