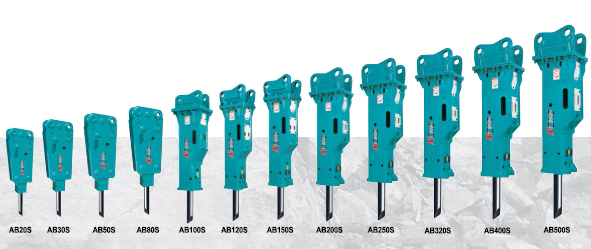

AB S Series

Attachments
Description		AB20S	AB30S	AB50S	AB80S	AB100S	AB120S	AB150S	AB200S	AB250S	AB320S	AB400S	AB500S
Required Oil Flow (ℓ/min)		20 ~ 40	25 ~ 50	40 ~ 70	50 ~ 90	60 ~ 100	80 ~ 100	90 ~ 120	100 ~ 150	120 ~ 180	180 ~ 240	200 ~ 260	210 ~ 290
Working Pressure (kg/㎠)		90 ~ 120	90 ~ 120	110 ~ 140	120 ~ 150	130 ~ 160	150 ~ 170	150 ~ 170	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 180
System relief (bar)		150	150	160	160	180	200	200	210	210	210	210	210
Blows per minute (bpm)		700 ~ 1,200	600 ~ 1,100	500 ~ 900	400 ~ 800	400 ~ 800	350 ~ 700	350 ~ 650	350 ~ 600	350 ~ 500	300 ~ 450	250 ~ 350	200 ~ 350
Impact energy (joule)		180	225	325	600	700	1,275	2,000	2,950	4,500	5,000	6,100	9,500
Tool Diameter (mm)		45	53	68	75	85	100	125	135	140	155	165	175
Oil hose Diameter (mm)		13	13	13	13	19	19	25	25	25	32	32	32
Operating weight (kg)	Low noise box type (with Mounting Cap)	120	160	300	450	570	856	1,296	1,500	1,765	2,670	2,833	3,995
Operating weight (kg)	Side Plate type (with Mounting Cap)	108	148	283	410	540	790	1,275	1,480	1,740	2,550	2,815	3,970
Height with tool (mm)		1,046	1,128	1,362	1,441	1,760	1,985	2,224	2,301	2,366	2,728	2,820	2,924
85 dB(A) Radius (m)	Low noise box type	7	7	8	10	11	12	13	14	15	16	17	18
85 dB(A) Radius (m)	Side Plate type	12	12	13	16	18	21	31	33	35	37	42	43
Weight of carrier (min/max),(ton)		1.2 ~ 3	2.5 ~ 4.5	4 ~ 7	6 ~ 9	7 ~ 14	11 ~ 16	15 ~ 18	16 ~ 21	18 ~ 26	28 ~ 35	30 ~ 45	40 ~ 55
Back head sealed gas (bar)		14	14	16.3	16.3	16.3	16.3	16.3	16.3	16.3	16.3	16.3	16.3
Bucket Capacity (cbm)		0.03 ~ 0.1	0.06 ~ 0.2	0.15 ~ 0.3	0.2 ~ 0.35	0.25 ~ 0.5	0.4 ~ 0.6	0.5 ~ 0.7	0.6 ~ 0.8	0.7 ~ 0.9	1.1 ~ 1.4	1.2 ~ 1.7	1.4 ~ 2.0
