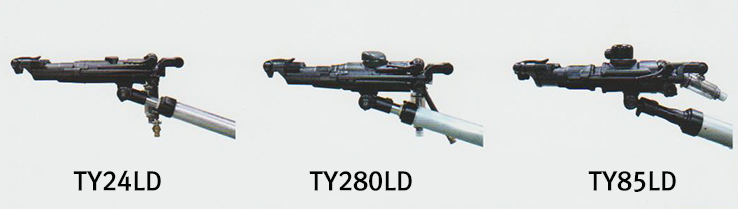

| Model No | Shank Size | Weight(kg) | Overall Length(mm) | Piston Stroke(mm) | Piston Dia(mm) | Air Consumption(mm3/min) | Leg Used | |
|---|---|---|---|---|---|---|---|---|
| TY24LD | H22 X 108 | 26 | 660 | 68 | 66.7 | 2.7 | SL-24 | |
| TY280LD | H22 X 108 | 30 | 675 | 68 | 76.2 | 3.5 | SL-280 | |
| TY85LD | H22 X 108 | 27 | 615 | 60 | 85 | 3.5 | SL-85 | |

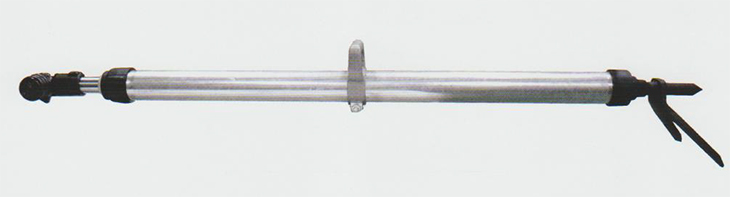

| Model No | Weight(kg) | Length(mm) | Length(mm, extended) | Feed Length(mm) | Feed Cylinder Dia(mm) | |
|---|---|---|---|---|---|---|
| SL-24 | 12 | 1,395 | 2,360 | 965 | 56 | |
| SL-280 | 15.2 | 1,750 | 2,960 | 1,210 | 30 | |
| SL-85 | 13 | 1,530 | 2,530 | 1,000 | 65 | |
