Product Detail

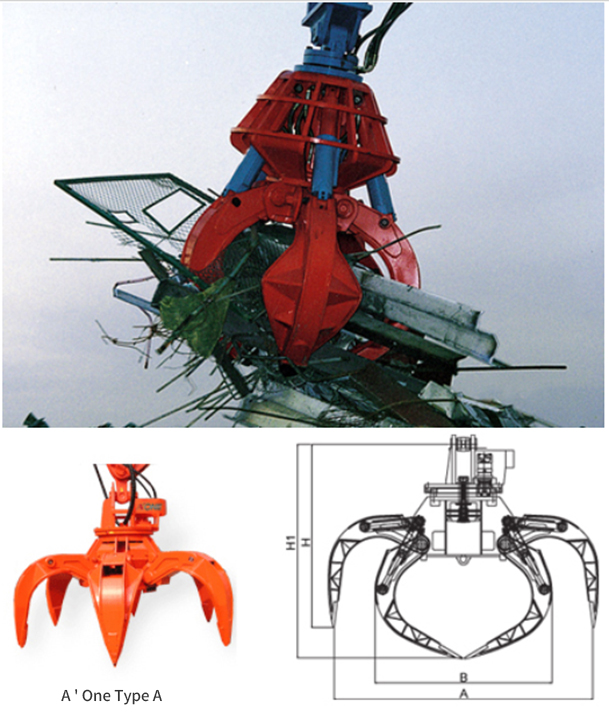

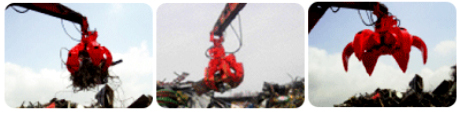

Scrap Grapple

Specifications

Attachments
Model AOSGA-600 AOSGA-800 AOSGA-1000 AOSGA-1500
Capacity(LT.) 600 800 1000 1500
Weight(KG) 1080 1300 1520 1910
A 1705 1945 2100 2450
B 1220 1300 1529 1770
H 1269 1392 1446 1690
H1 1524 1647 1670 2050
Excavator(TON) 16.5 - 18 18 - 25 28 - 35 36 -42

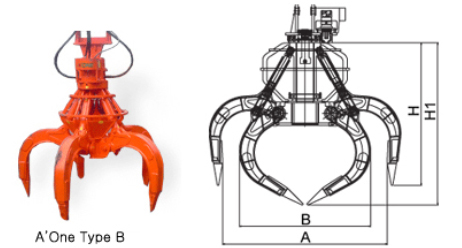

Attachments
Model AOSGA-600 AOSGA-800 AOSGA-1000 AOSGA-1500
Capacity(LT.) 600 800 1000 1500
Weight(KG) 1150 1420 1620 2050
A 1705 1945 2100 2450
B 1220 1300 1529 1770
H 1490 1530 1680 1930
H1 1710 1870 1890 2350
Excavator(TON) 16.5 - 18 18 - 25 28 - 35 36 -42

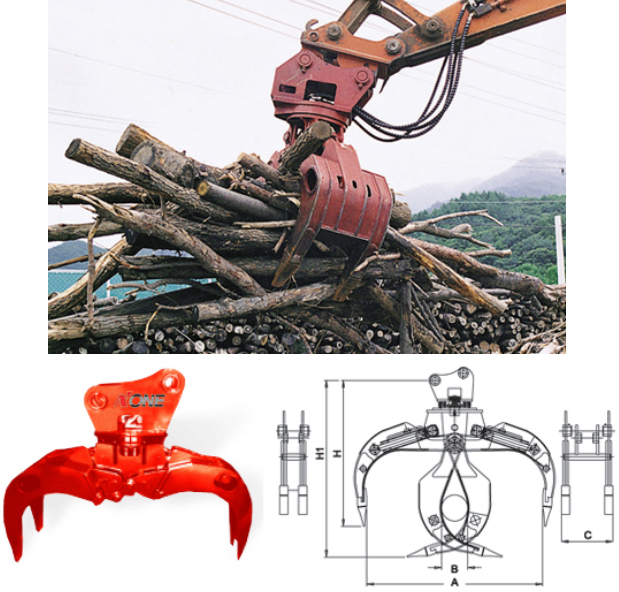

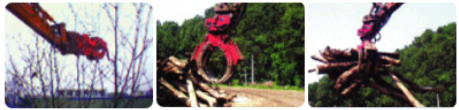

Wood Grapple

Attachments
Model AOWD-300 AOWD-600 AOWD-800 AOWD-1000 AOWD-1500
Weight(KG) 350 820 980 1200 1500
A 900 1500 1680 1960 2200
B 104 256 400 450 500
C 326 544 470 790 790
H1 1019 1175 1350 1560 1650
H 1125 1385 1560 1790 1780
Excavator(TON) 5 12 - 18 18 - 25 25 - 32 32 - 45

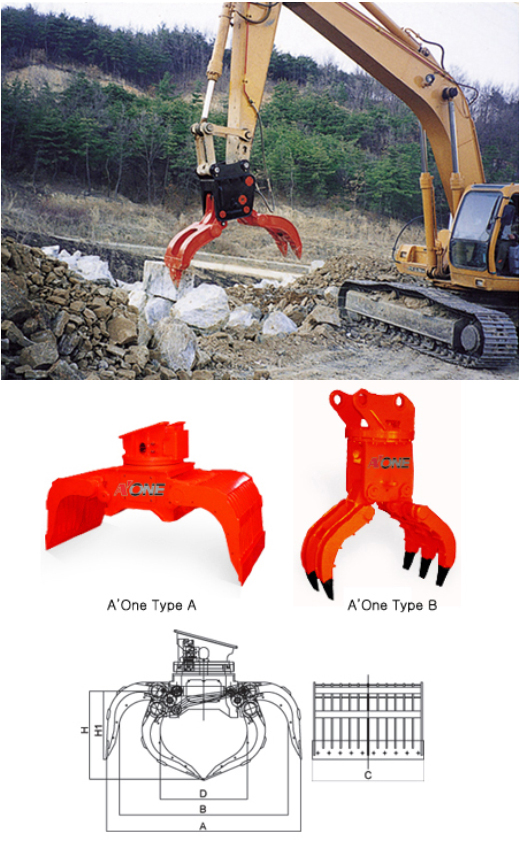

Stone Grapple

Stone Graple Type A Specifications

Attachments
Model AOST-1500 AOST-2000 AOST-3000 AOST-4000
Capacity(LT.) 300 500 800 900
Weight(KG) 900 1370 2100 2500
A 1718 2000 2038 2070
B 1058 1210 1502 1700
H 1204 1444 1869 2050
H1 1034 1270 1723 2000
C 850 1000 1115 1200
D 450 450 450 450
Excavator(TON) 6.5 - 1.8 18 - 25 28 - 35 35 - 42

Stone Graple Type A Specifications

Attachments
Model AOSTB-1500 AOSTB-2000 AOSTB-3000 AOSTB-4000 AOSTB-4000
Capacity(LT.) 600 800 1000 1500 2000
Weight(KG) 1325 1526 1804 2100 2350
Min 121 130 140 145 150
Max 1329 1440 1760 2057 2257
H 777 1041 1189 1320 1440
H1 833 1050 1150 1300 1410
L 520 520 572 650 750
L1 900 900 1004 1100 1200
Excavator(TON) 12 - 1.8 18 - 25 28 - 35 35 - 42 43 - 47
Price(US$)
  • * Above specifictations are subject to change without prior notice.
