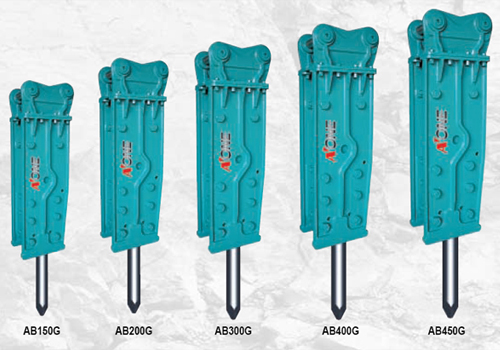

| Description | Unit | AB150G | AB200G | AB300G | AB400G | AB450G | |
|---|---|---|---|---|---|---|---|
| Oil flow rate | Lit/min (gpm) |
90 - 120 (24 - 32) |
125 - 150 (33 - 40) |
150 - 190 (40 - 50) |
180 - 250 (48 - 67) |
190 - 310 (50 - 82) |
|
| Operating Oil Pressure | bar (psi) |
150 - 170 (2,205 - 2,499) |
160 - 180 (2,352 - 2,646) |
160 - 180 (2,352 - 2,646) |
165 - 185 (2,410 - 2,719) |
180 - 210 (2,610 - 3,045) |
|
| System relief | Bar (psi) |
200 (2,900) |
210 (3,045) |
210 (3,045) |
210 (3,045) |
210 (3,045) |
|
| Blows per minute | bpm | 400 - 750 | 350 - 700 | 300 - 650 | 260 - 450 | 120 - 340 | |
| Impact energy | joule | 2,800 (2,065) |
4,800 (3,540) |
6,000 (4,425) |
9,000 (6,637) |
10,500 (7,743) |
|
| Tool diameter | mm (inch) |
120 (4.72) |
135 (5.31) |
150 (5.9) |
160 (6.3) |
165 (6.5) |
|
| Oil horse diameter | mm (inch) |
19 (3/4) |
25 (1) |
25 (1) |
32 (1 1/4) |
32 (1 1/4) |
|
| Operating weight |
Low noise box type (with Mounting Cap) |
Kg (Ib) |
1,110 (2,440) |
1,620 (3,570) |
2,080 (4,570) |
2,790 (6,130) |
3,020 (6,640) |
| Side Plate type (with Mounting Cap) |
Kg (Ib) |
1,180 (2,590) |
1,620 (3,560) |
2,620 (103.1) |
2,950 (6,490) |
3,200 (7,040) |
|
| Height with tool | mm (inch) |
2,035 (80) |
2,305 (90.7) |
2,620 | 2,765 | 3,000 (118) |
|
| 85 dB(A) Radius |
Low noise box type | m | 14 | 15 | 16 | 17 | 19 |
| Side Plate type | m | 33 | 35 | 37 | 41 | 43 | |
| Weight of carrier Min/Max | Ton (lbs) |
13 - 20 (29,000-44,000) |
18 - 25 (40,000-55,000) |
27 - 40 (59,000-88,000) |
32 - 45 (70,000-99,000) |
35 - 50 (77,000-110,000) |
|
| Back head sealed gas pressure | Bar (psi) |
6.2 (90) |
6.2 (90) |
6.2 (90) |
6.2 (90) |
16.3 (236) |
|
| Bucket Capacity | cbm | 0.7 - 1.0 | 0.8 - 1.1 | 1.0 - 1.3 | 1.0 - 1.3 | 1.1 - 1.6 | |
| Accumulator sealed gas pressure | Bar (psi) |
55 (797) |
55 (797) |
55 (797) |
60 (870) |
60 (870) |
|
