Hydraulic Crusher & Pulverizer

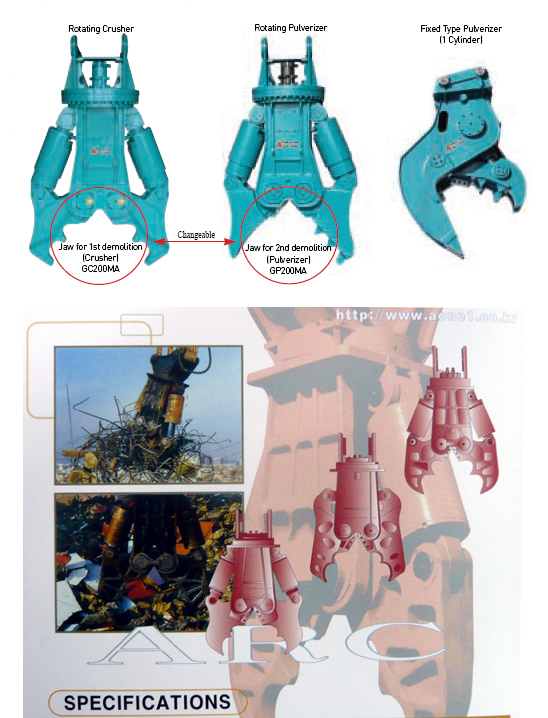

- Jaw can be interchangeable. For example, if you buy one Crusher(GC200MA) and one set of jaw for Pulverizer(GP200MA) then the Crusher can be used both Crusher(GC200MA) and also Pulverizer(GP200MA) and vice versa.

Crusher

Specifications

Attachments

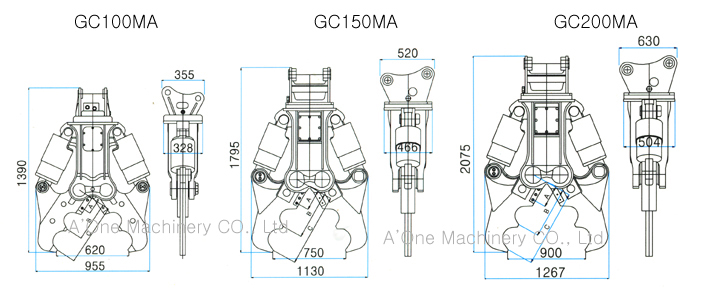

Unit / Model GC100MA GC150MA GC200MA
Total weight(kg) 500 1000 1500
Total length(mm) 1390 1795 2075
Full width(mm) 955 1130 1267
Max opening width(mm) 620 750 900
Crushing power A 911KN 1309KN 2004KN
Crushing power B 430KN 590KN 983KN
Crushing power C 280KN 390KN 579KN
Suitable excavator(ton) 5 - 9 ton 9 - 17 ton 17 - 25 ton
Pressure 240kg/cm2 300kg/cm2 300kg/cm2
Rotation(degree) 360 360 360

Crusher

Specifications

Attachments

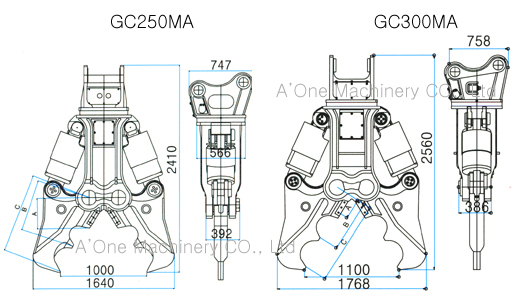

Unit / Model GC250MA GC300MA
Total weight(kg) 2380 2850
Total length(mm) 2410 2560
Full width(mm) 1640 1768
Max opening width(mm) 1000 1100
Crushing power A 1840KN 3047KN
Crushing power B 1148KN 1527KN
Crushing power C 845KN 962KN
Suitable excavator(ton) 20 - 30 ton 25 - 35 ton
Pressure 320kg/cm2 320kg/cm2
Rotation(degree) 360 360

Crusher & Pulverizer

Specifications

Attachments

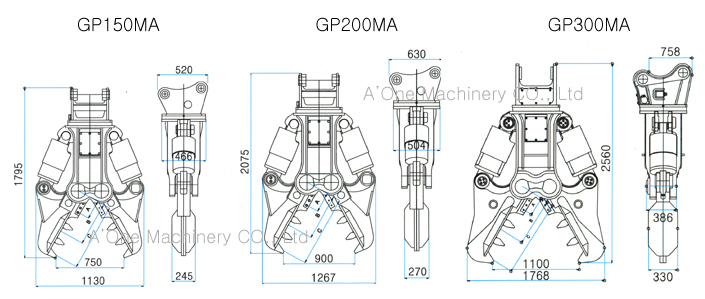

Unit / Model GP150MA GP200MA GP300MA
Total weight(kg) 1100 1550 2500
Total length(mm) 1795 2075 2560
Full width(mm) 1130 1267 1768
Max opening width(mm) 750 900 1100
Crushing power A 1309KN 2004KN 3047KN
Crushing power B 590KN 983KN 1527KN
Crushing power C 390KN 579KN 962KN
Suitable excavator(ton) 9 - 17 ton 18 - 25 ton 25 - 35 ton
Pressure 300kg/cm2 300kg/cm2 320kg/cm2
Rotation(degree) 360 360 360

Pulverizer

Specifications

Attachments

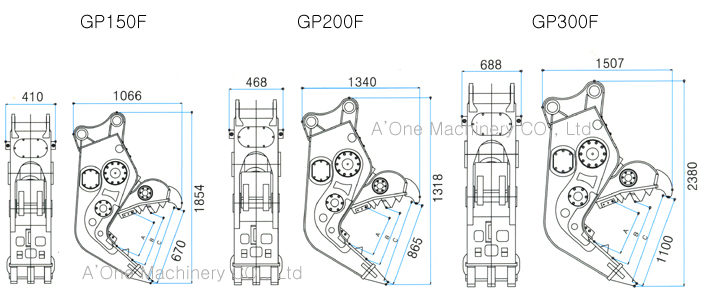

Unit / Model GP150F GP200F GP300F
Total weight(kg) 850 1600 2200
Total length(mm) 1854 1318 2380
Full width(mm) 1066 1340 1507
Max opening width(mm) 670 865 1100
Crushing power A 1710KN 2400KN 3530KN
Crushing power B 1150KN 1456KN 2000KN
Crushing power C 980KN 1250KN 1610KN
Suitable excavator(ton) 9 - 17 ton 18 - 25 ton 25 - 35 ton
Pressure 250kg/cm2 280kg/cm2 320kg/cm2
Rotation(degree) Fixed type Fixed type Fixed type

Mini Crusher

Specifications

Attachments

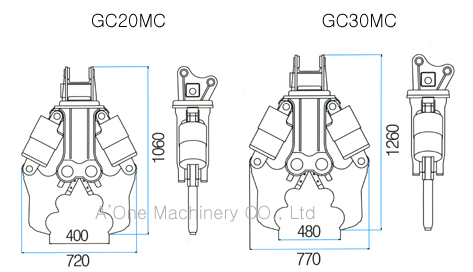

Unit / Model GC20MC GC30MC
Total weight(kg) 210 320
Total length(mm) 1060 1260
Full width(mm) 720 770
Max opening width(mm) 400 480
Crushing power A 660KN 773KN
Crushing power B 307KN 336KN
Crushing power C 200KN 240KN
Suitable excavator(ton) 3 - 5 ton 5 - 7 ton
Pressure 220kg/cm2 220kg/cm2
Rotation(degree) 360 360
