Product Detail

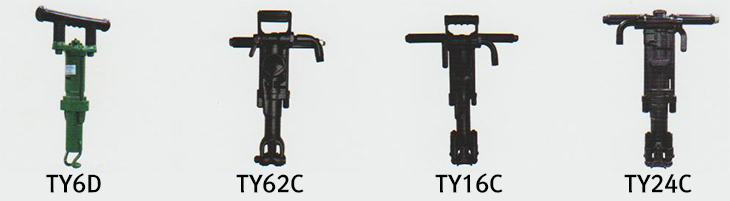

HAND DRILL

Specifications of Hand Drill

Pneumatic Drill
Model No Shank Size Weight(kg) Overall Length(mm) Piston Stroke(mm) Piston Dia(mm) Air Consumption(mm3/min)
TY6D H15 X 88 5.7 424 32 38 0.85
TY62C H22 X108 13 495 37 62 1.9
TY16C H22 X 83, H22 X 108 17 580 55 60 2.1
TY24C H22 X 108 24 610 68 66.7 2.7

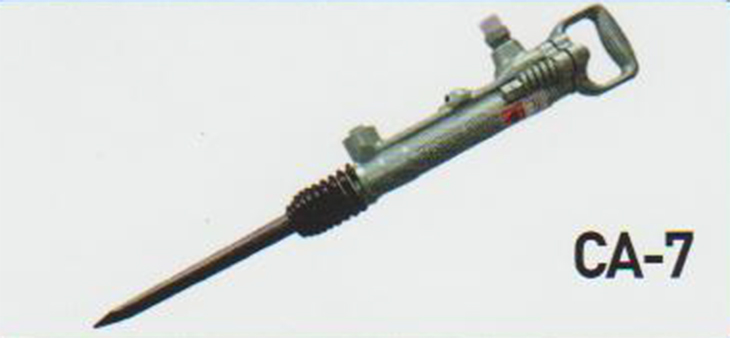

PICK HAMMER

Specifications of Coal Pick

Pneumatic Drill
Model No Shank Size Weight(kg) Overall Length(mm) Piston Stroke(mm) Piston Dia(mm) Air Consumption(mm3/min)
CA-7 26 X 880 7 470 125 35 1.2

AIR AUGER

Specifications of Auger Drill

Pneumatic Drill
Model No Shank Size Weight(kg) Overall Length(mm) Piston Stroke(mm) Piston Dia(mm) Air Consumption(mm3/min)
AA-1 41 8.8 266 2,000 1,000 2.6
