XSL40L

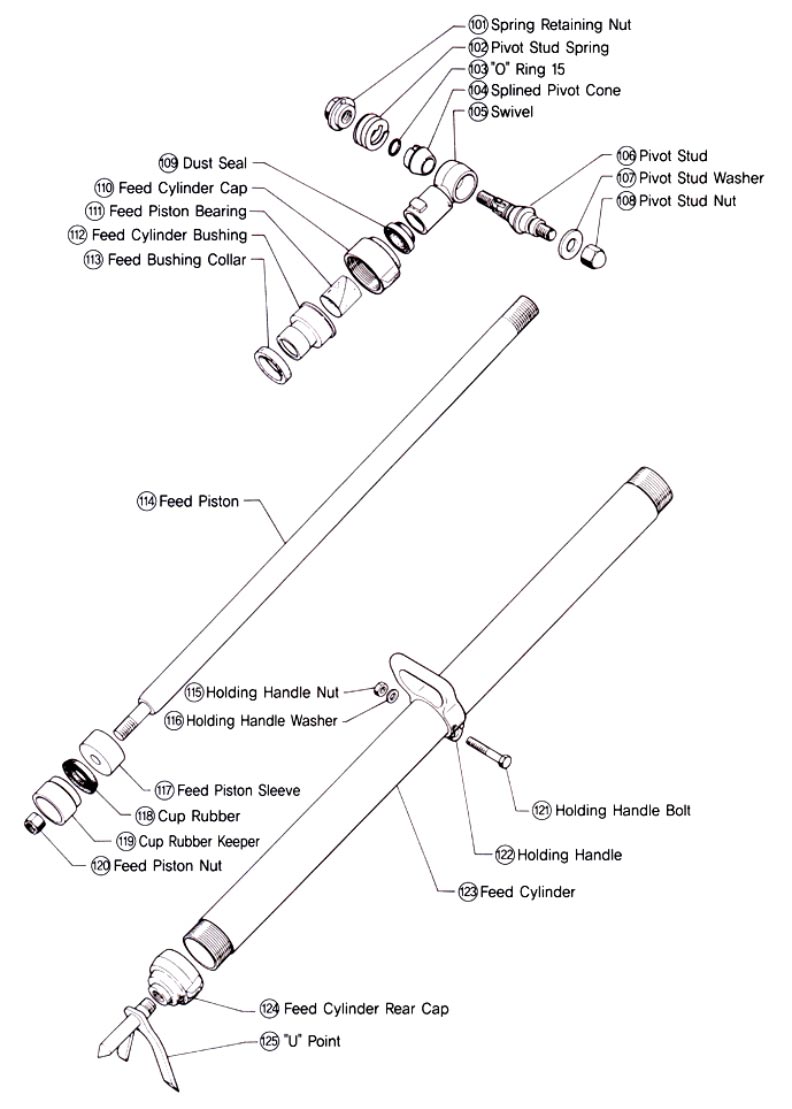

XSL40L PARTS LIST

Pneumatic Drill
No.	MODEL	PART NUMBER
1	Spring Retaining Nut	7825-90-007A
2	Pivot Stud Spring	7898-17-0610
3	"O" Ring 15	9954-80-0150
4	Splined Pivot Cone	7825-90-0050
5	Swivel	7825-90-001A
6	Pivot Stud	7825-90-002B
7	Pivot Stud Washer	9920-36-0000
8	Pivot Stud Nut	7825-90-003A
9	Dust Seal	7897-84-005D
10	Feed Cylinder Cap	7817-90-023B
