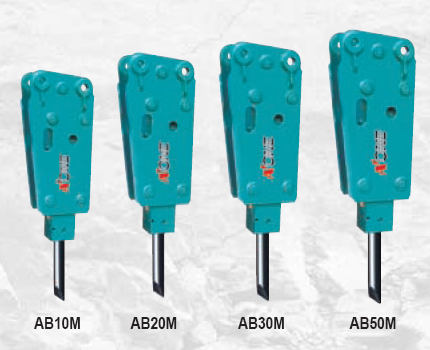

AB M Series - Light

Attachments
Description Unit AB10M AB20M AB30M AB50M
Oil flow rate Lit/min
(gpm)		 15 - 30
(4 - 8)		 20 - 35
(5 - 9)		 24 - 50
(6 - 13)		 34 - 60
(9 - 16)
Operating Oil Pressure bar
(psi)		 75 - 95
(1,090 - 1,380)		 80 - 100
(1,176 - 1,470)		 90 - 120
(1,323 - 1,764)		 95 - 130
(1,396 - 1,911)
System relief Bar
(psi)		 150
(2,175)		 150
(2,175)		 150
(2,175)		 160
(2,350)
Blows per minute bpm 800 - 1,400 650 - 1,200 550 - 1,100 450 - 1,000
Impact energy joule
(foot-
pounds)		 180
(132)		 225
(165)		 325
(239)		 600
(442)
Tool diameter mm
(inch)		 40
(1.57)		 45
(1.77)		 60
(2.36)		 70
(2.75)
Oil horse diameter mm
(inch)		 13
(1/2)		 13
(1/2)		 13
(1/2)		 13
(1/2)
Operating weight Low noise box type
(with Mounting Cap) 		Kg
(Ib)		 90
(198)		 105
(230)		 180
(390)		 300
(660)
Side Plate type
(with Mounting Cap) 		Kg
(Ib)		 75
(165)		 90
(198)		 176
(380)		 320
(700)
Height with tool mm
(inch)		 973
(38.3)		 1,046
(41.2)		 1,180
(46.4)		 1,362
(53.6)
85 dB(A) Radius Low noise box type m 7 7 8 10
Side Plate type m 12 12 13 16
Weight of carrier Min/Max Ton (lbs) 0.5 - 2.5
(1,100 - 5,500)		 0.8 - 3.0
(1,760 - 6,600)		 1.5 - 4.0
(3,300 - 8,800)		 2.5 - 7.5
(5,500 - 16,500)
Back head sealed gas pressure Bar
(psi)		 14
(203)		 14
(203)		 14
(203)		 16.3
(236)
Bucket Capacity cbm 0.04 - 0.1 0.06 - 0.1 0.08 - 0.15 0.15 - 0.25
  • * Specifications - Box(Silenced), Side and Top type are available.
  • * Above specifications are subject to change without prior notice.

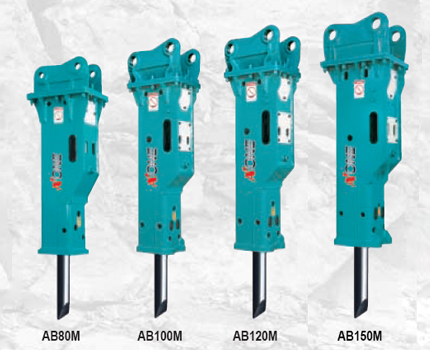

AB M Series - Medium

Attachments
Description Unit AB80M AB100M AB120M AB150M
Oil flow rate Lit/min
(gpm)		 40 - 80
(10 - 21)		 45 - 85
(12 - 22)		 85 - 110
(22 - 29)		 110 - 120
(26 - 32)
Operating Oil Pressure bar
(psi)		 100 - 140
(1,470 - 2,058)		 130 - 150
(1,911 - 2,205)		 150 - 170
(2,205 - 2,499)		 150 - 170
(2,205 - 2,499)
System relief Bar
(psi)		 160
(2,350)		 180
(2,610)		 200
(2,900)		 200
(2,900)
Blows per minute bpm 475 - 950 480 - 850 450 - 780 420 - 700
Impact energy joule
(foot-
pounds)		 700
(516)		 1,275
(940)		 2,000
(1,475)		 2,950
(2,175)
Tool diameter mm
(inch)		 75
(2.95)		 90
(3.54)		 100
(3.93)		 125
(4.92)
Oil horse diameter mm
(inch)		 13
(1/2)		 19
(3/4)		 19
(3/4)		 25
(1)
Operating weight Low noise box type
(with Mounting Cap) 		Kg
(Ib)		 380
(830)		 580
(1,270)		 860
(1,890)		 1,180
(2,600)
Side Plate type
(with Mounting Cap) 		Kg
(Ib)		 394
(860)		 570
(1,250)		 830
(1,820)		 1,230
(2,700)
Height with tool mm
(inch)		 1,441
(56.7)		 1,760
(69.3)		 1,985
(78.1)		 2,224
(87.5)
85 dB(A) Radius Low noise box type m 11 12 13 14
Side Plate type m 18 21 31 33
Weight of carrier Min/Max Ton (lbs) 5 - 9
(16,000 - 19,800)		 6 - 11
(13,200 - 24,200)		 9 - 17
(19,500 - 37,000)		 13 - 22
(29,000 - 48,000)
Back head sealed gas pressure Bar
(psi)		 16.3
(236)		 16.3
(236)		 16.3
(236)		 16.3
(236)
Bucket Capacity cbm 0.2 - 0.35 0.25 - 0.45 0.4 - 0.7 0.5 - 0.8
  • * Specifications - Side and Top type are available.
  • * Above specifictations are subject to change without prior notice.

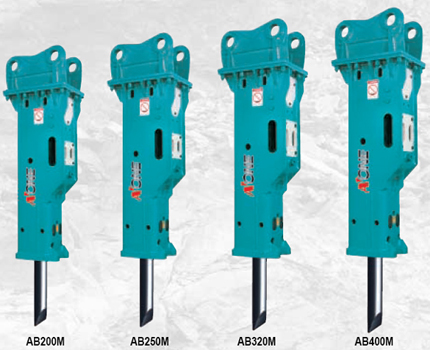

AB M Series - Heavy

Attachments
Description Unit AB200M AB250M AB320M AB400M
Oil flow rate Lit/min
(gpm)		 120 - 150
(32 - 40)		 120 - 150
(32 - 40)		 160 - 230
(42 - 61)		 190 - 250
(50 - 66)
Operating Oil Pressure bar
(psi)		 160 - 180
(2,352 - 2,646)		 160 - 180
(2,352 - 2,646)		 160 - 180
(2,352 - 2,646)		 160 - 185
(2,352 - 2,719)
System relief Bar
(psi)		 210
(3,045)		 210
(3,045)		 210
(3,045)		 210
(3,045)
Blows per minute bpm 350 - 680 320 - 660 280 - 550 280 - 400
Impact energy joule
(foot-
pounds)		 4,500
(3,318)		 5,000
(3,687)		 6,100
(4,498)		 8,900
(6,563)
Tool diameter mm
(inch)		 135
(5.31)		 140
(5.51)		 155
(6.10)		 160
(6.29)
Oil horse diameter mm
(inch)		 25
(1)		 25
(1)		 32
(1 1/4)		 32
(1 1/4)
Operating weight Low noise box type
(with Mounting Cap) 		Kg
(Ib)		 1,470
(3,230)		 1,680
(3,700)		 2,350
(5,170)		 2,750
(6,060)
Side Plate type
(with Mounting Cap) 		Kg
(Ib)		 1,580
(3,470)		 1,790
(3,930)		 2,530
(5,560)		 2,940
(6,460)
Height with tool mm
(inch)		 2,301
(90.6)		 2,366
(93.1)		 2,728
(107.4)		 2,820
(111)
85 dB(A) Radius Low noise box type m 15 16 17 18
Side Plate type m 35 37 42 43
Weight of carrier Min/Max Ton (lbs) 18 - 28
(40,000 - 61,000)		 20 - 30
(44,000 - 66,000)		 28 - 40
(61,000 - 88,000)		 32 - 45
(70,400 - 99,000)
Back head sealed gas pressure Bar
(psi)		 16.3
(236)		 16.3
(236)		 16.3
(236)		 16.3
(236)
Bucket Capacity cbm 0.7 - 1.0 0.8 - 1.1 1.0 - 1.3 1.1 - 1.6
  • * Specifications - Side and Top type are available.
  • * Above specifications are subject to change without prior notice.
